Double Torch Wear Plate Harfacing Machine

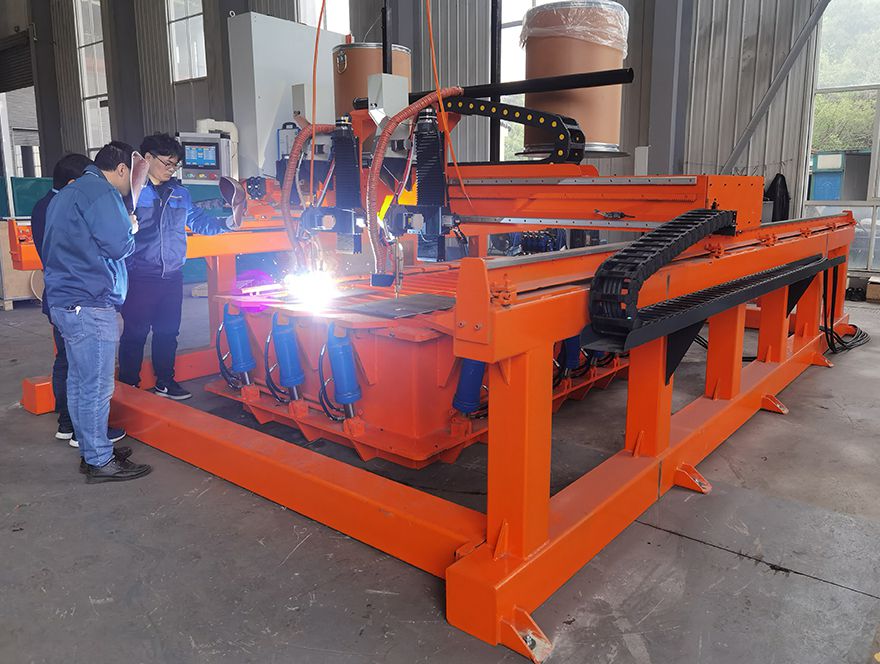

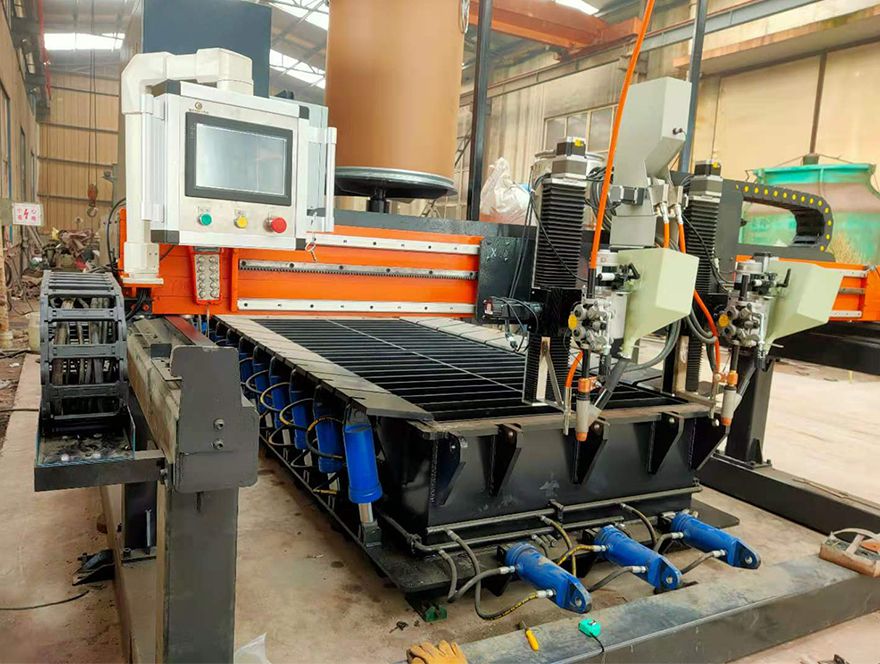

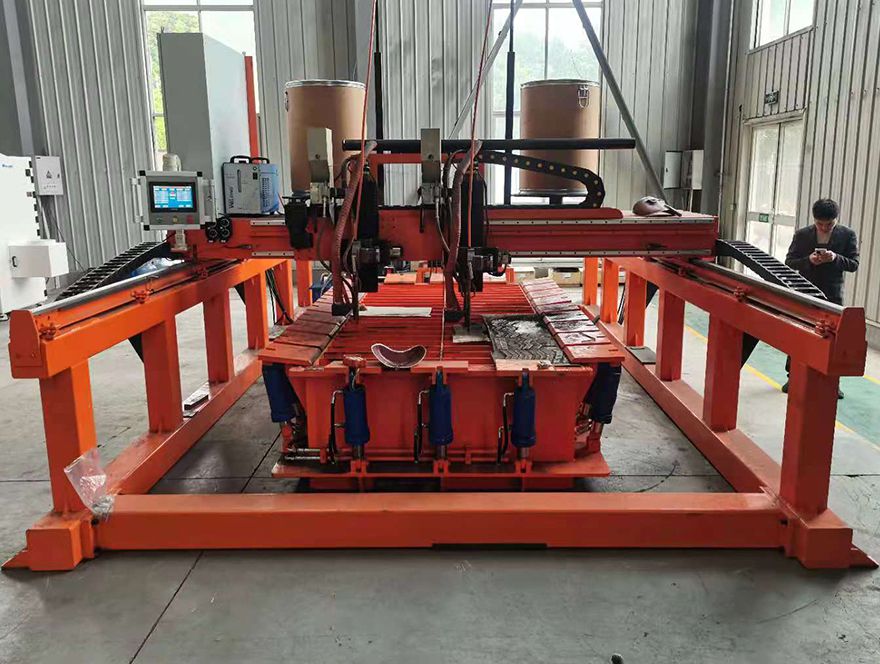

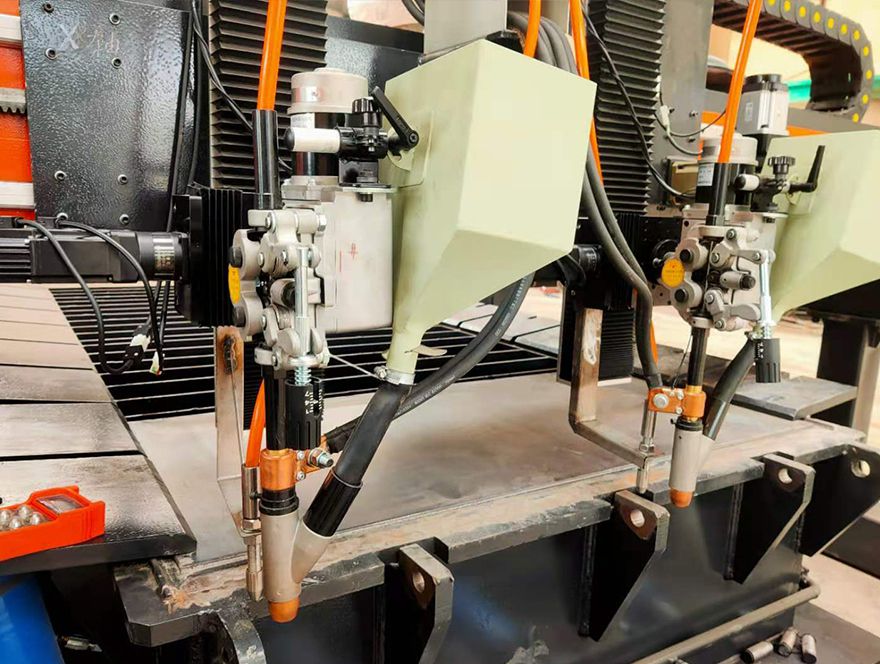

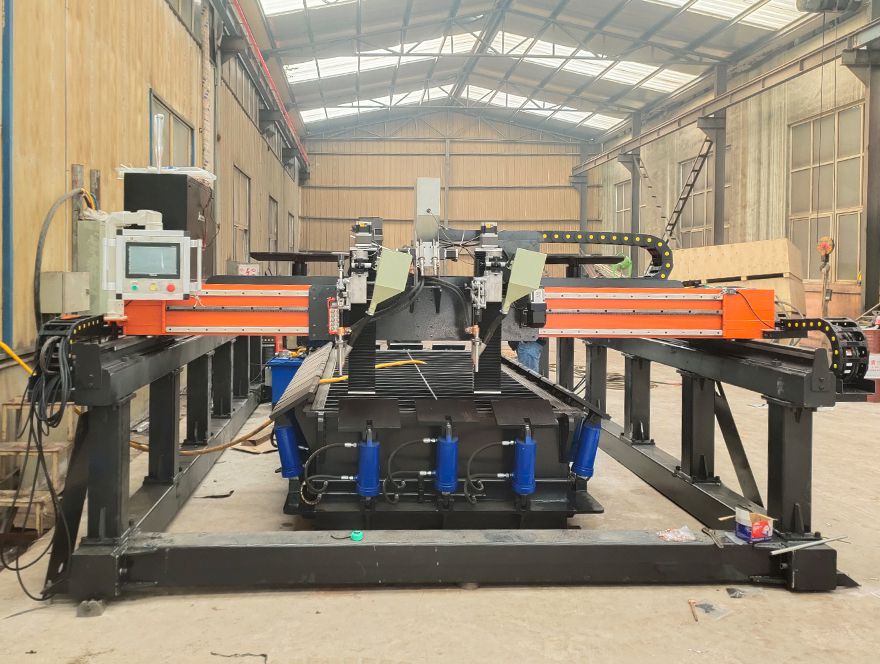

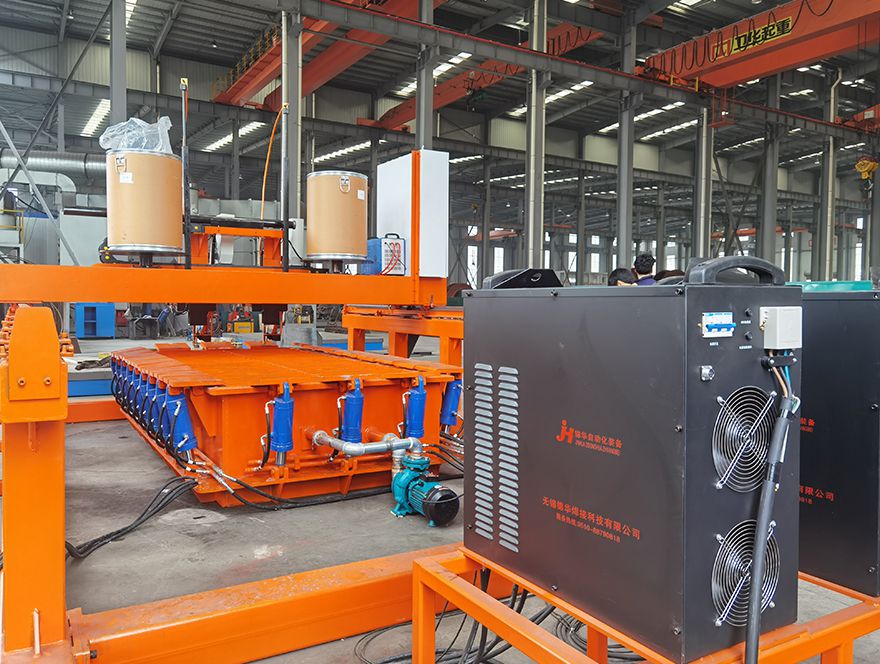

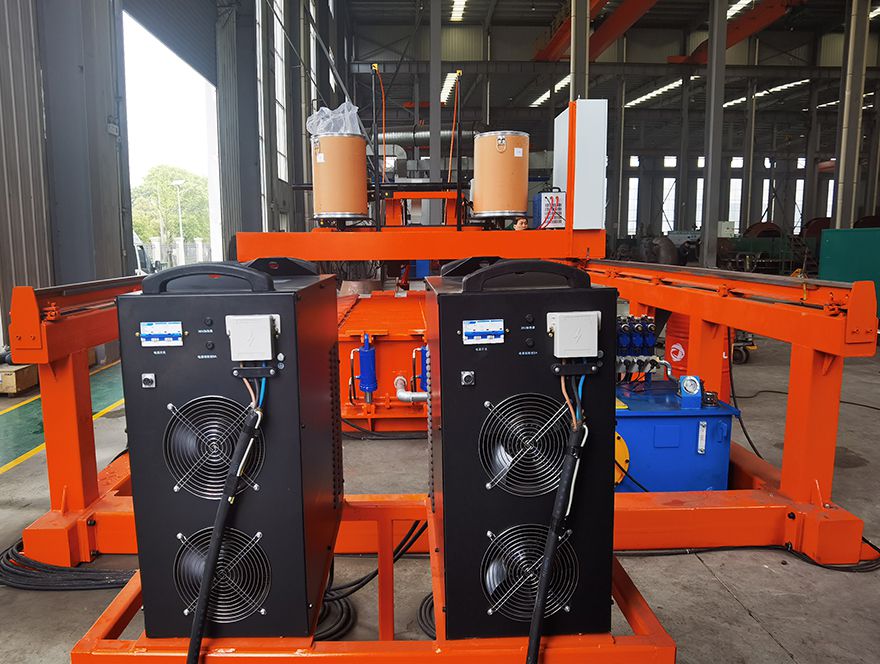

JH-800D is a new generation of double-torch open-arc flat wear plate hardfacing equipment based on the introduction and digestion of foreign advanced technology, combined with the domestic actual situation and years of technical accumulation, and is specially developed for wear plate hardfacing. The equipment includes gantry movable positioning frame, hydraulic platform, welding torch vertical adjustment linear slide, welding torch horizontal adjustment linear slide, circulating water torch cooling system, alloy powder adding mechanism, circulating water workpiece cooler table, welding wire placement platform and self-rotating mechanism, smoke exhaust pipe, adjustable speed wire feeding mechanism, water-cooled welding gun, integrated electrical cabinet and operation monitoring box, etc.

Inquire Now Next Product

SPECIFICATION

Investing in a Double Torch Wear Plate Hardfacing Machine offers numerous benefits for businesses aiming to extend the lifespan and enhance the performance of their industrial equipment. With its exceptional efficiency, precision, versatility, and adaptability, this advanced machine empowers operators to achieve superior hardfacing results. By choosing the right hardfacing materials and following the proper procedures, businesses can unlock the full potential of their equipment, reducing maintenance costs, improving productivity, and ultimately boosting their competitiveness in the industry.

No.	Description	Parameter
1	Machine Frame	Gantry Type
2	Hardfacing Type	Open Arc & SAW
3	Hardfacing Range	L3000mm×W1500mm
4	Hardfacing Thickness	3mm – 30mm
5	Welding Speed	50 – 800 mm/min
6	Vertical Lifting Distance	250mm
7	Torch Lifting Speed	0 – 500mm/min
8	Drive Mode	Both Side Drive
9	Machine Weight	2.5T
10	Machine Dimension	600037002000m
11	X Y Axis Travel accuracy	±0.1mm
12	Welding Torch Lifting Accuracy	±0.1mm
13	Swing Accuracy	±0.01mm
14	Hardfacing Thickness Accuracy	±0.01mm

Hardfacing, a process that involves depositing wear-resistant materials onto the surface of industrial equipment, plays a vital role in extending the lifespan and durability of various machinery. By applying a layer of hard, abrasion-resistant material to the equipment, hardfacing minimizes wear and tear, enhances resistance to corrosion, and prevents premature failure. One remarkable solution in the realm of hardfacing is the Double Torch Wear Plate Hardfacing Machine.

The Double Torch Wear Plate Hardfacing Machine is a cutting-edge tool designed to streamline and optimize the hardfacing process. Equipped with advanced features and state-of-the-art technology, this machine ensures precise and efficient deposition of wear-resistant materials onto equipment surfaces.

ADVANTAGE

One button automatic operation

High quality weld deposits

Wireless remote control panel, real-time display of trolley coordinates

Welding wire broken alarm and break point detection

High productivity in manufacturing

Precise control over deposit thickness and shape

Unrivaled Strength

Adaptable for various welding processes
